六、盒模型
1、文档流(normalflow)
网页是一个多层的结构,一层摁着一层
- 在文档流中
- 不在文档流中(脱离文档流)
2、块元素
- 块元素会在页面中独占一行
- 默认宽度是父元素的全部(会把父元素撑满)
- 默认高度是被内容撑开(子元素)

3、行内元素
- 行内元素不会独占页面的一行,只占自身的大小
- 行内元素在页面中左向右水平排列(书写习惯一致)
- 如果一行之中不能容纳下所有的行内元素,则元素会换到第二行继续自左向右排列
- 行内元素的默认宽度和高度都是被内容撑开

4、盒子模型

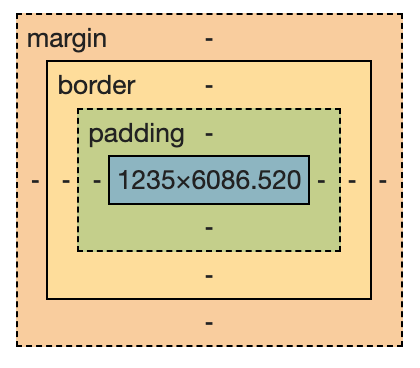

盒模型、盒子模型、框模型(box model)
CSS 将页面中的所有元素都设置为了一个矩形的盒子
- 内容区(content)
- 内边距(padding)
- 边框(border)
- 外边距(margin)

内容区(content)
内容区是盒子模型的中心,它呈现了盒子的主要信息内容,这些内容可以是文本、图片等多种类型
-
width和height
设置排列内容区的大小 -
width
设置内容区的宽度 -
height
设置内容区的高度
效果.box1 {width: 200px;height: 200px;border-color: red;/*solid 实线dotted 点状虚线dashed 虚线double 双线*/border-style: solid;background-color: rgb(73, 184, 139);}.box1 { width: 200px; height: 200px; border-color: red; /* solid 实线 dotted 点状虚线 dashed 虚线 double 双线 */ border-style: solid; background-color: rgb(73, 184, 139); }.box1 { width: 200px; height: 200px; border-color: red; /* solid 实线 dotted 点状虚线 dashed 虚线 double 双线 */ border-style: solid; background-color: rgb(73, 184, 139); }

边框(border)
边框属于盒子边缘,边框里边属于盒子内部,出了边框都是盒子的外部
border-width
:边框的宽度:默认 3px-
border-top-width
上边框的宽度 -
border-right-width
右边框的宽度 -
border-bottom-width
下边框的宽度 -
border-left-width
左边框的宽度
-

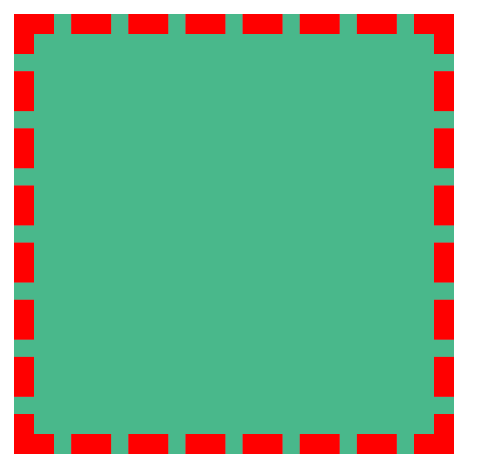

border-color
边框的颜色:默认使用 color 的颜色值border-top-color
上边框的颜色border-right-color
右边框的颜色border-bottom-color
下边框的颜色border-left-color
左边框的颜色border-style
:边框的样式:没有默认值,必须指定-
border-top-style
上边框的样式 -
border-right-style
右边框的样式 -
border-bottom-style
下边框的样式 -
border-left-style
左边框的样式
-




border-width
、 border-color
、border-style
还是其衍生出来的属性写法,都可以指定每个方向的边框情况
设定几个值就决定了对应方向的宽度、颜色或样式
- 四个值:
上 右 下 左
- 三个值:
上 左右 下
- 两个值:
上下 左右
- 一个值:
上下左右
border
:简写属性,通过该属性可以同时设置边框所有的相关样式,并且没有顺序要求
-
border-top
上边框的宽度、颜色和样式 -
border-right
右边框的宽度、颜色和样式 -
border-bottom
下边框的宽度、颜色和样式 -
border-left
左边框的宽度、颜色和样式

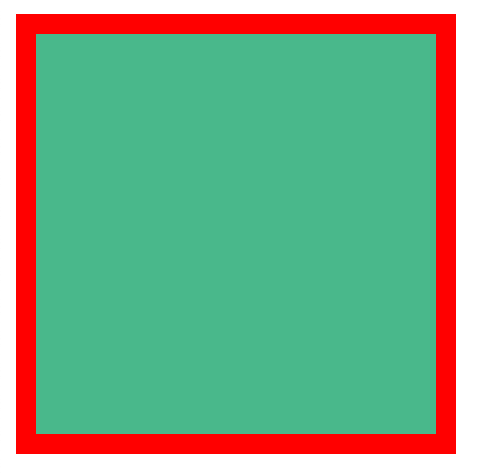

.box1 {border: 10px red solid;}.box1 { border: 10px red solid; }.box1 { border: 10px red solid; }
内边距(padding)
内边距,也叫填充,是内容区和边框之间的空间-
padding-top
上内边距 -
padding-right
右内边距 -
padding-bottom
下内边距 -
padding-left
左内边距

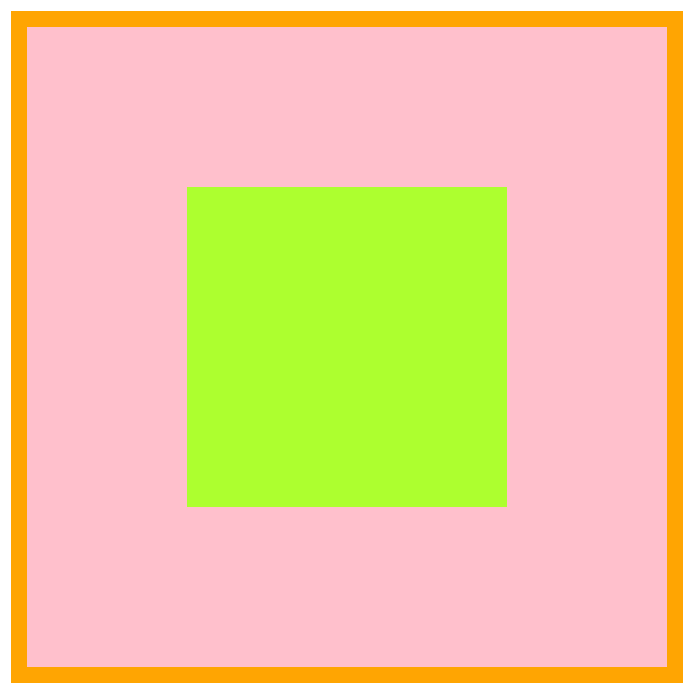

效果<style>.outer {width: 200px;height: 200px;border: 10px orange solid;background-color: pink;padding-right: 100px;padding-top: 100px;padding-bottom: 100px;padding-left: 100px;}.inner {width: 200px;height: 200px;background-color: greenyellow;}</style><div class="outer"><div class="inner"></div></div><style> .outer { width: 200px; height: 200px; border: 10px orange solid; background-color: pink; padding-right: 100px; padding-top: 100px; padding-bottom: 100px; padding-left: 100px; } .inner { width: 200px; height: 200px; background-color: greenyellow; } </style> <div class="outer"> <div class="inner"></div> </div><style> .outer { width: 200px; height: 200px; border: 10px orange solid; background-color: pink; padding-right: 100px; padding-top: 100px; padding-bottom: 100px; padding-left: 100px; } .inner { width: 200px; height: 200px; background-color: greenyellow; } </style> <div class="outer"> <div class="inner"></div> </div>

外边距(margin)
外边距,也叫空白边,位于盒子的最外围,是添加在边框外周围的空间。空白边使盒子之间不会紧凑地连接在一起,是 CSS 布局的一个重要手段 注意:外边距不会影响盒子可见框的大小,但是外边距会影响盒子的位置和占用空间 一共有四个方向的外边距:margin-top
:上外边距- 设置正值,元素自身向下移动
- 设置负值,元素自身向上移动
margin-right
:右外边距- 设置正值,其右边的元素向右移动
- 设置负值,其右边的元素向左移动
- 上述说法并不准确,对于块元素,设置
margin-right
不会产生任何效果
margin-bottom
:下外边距- 设置正值,其下边的元素向下移动
- 设置负值,其下边的元素向上移动
- 上述说法并不准确,对于块元素,会有垂直方向上的边距重叠问题(后面会细说)
margin-left
:左外边距- 设置正值,元素自身向右移动
- 设置负值,元素自身向左移动
- 如果我们设置的左和上外边距则会移动元素自身
- 而设置下和右外边距会移动其他元素

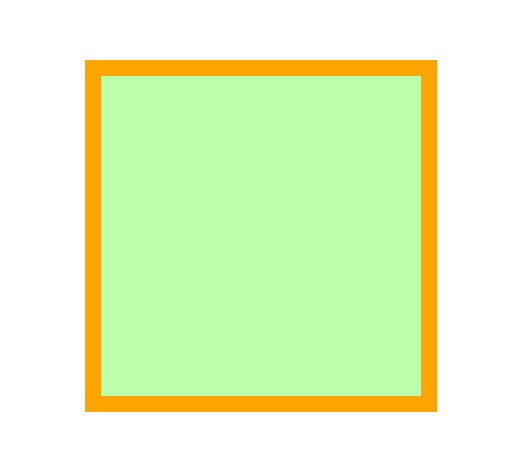

效果.box1 {width: 200px;height: 200px;background-color: #bfa;border: 10px orange solid;margin-top: 100px;margin-right: 100px;margin-bottom: 100px;margin-left: 100px;}.box1 { width: 200px; height: 200px; background-color: #bfa; border: 10px orange solid; margin-top: 100px; margin-right: 100px; margin-bottom: 100px; margin-left: 100px; }.box1 { width: 200px; height: 200px; background-color: #bfa; border: 10px orange solid; margin-top: 100px; margin-right: 100px; margin-bottom: 100px; margin-left: 100px; }

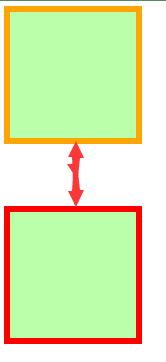

效果.box1 {width: 200px;height: 200px;background-color: #bfa;border: 10px orange solid;margin-bottom: 100px;}.box2 {width: 200px;height: 200px;background-color: #bfa;border: 10px red solid;margin-top: 100px;}.box1 { width: 200px; height: 200px; background-color: #bfa; border: 10px orange solid; margin-bottom: 100px; } .box2 { width: 200px; height: 200px; background-color: #bfa; border: 10px red solid; margin-top: 100px; }.box1 { width: 200px; height: 200px; background-color: #bfa; border: 10px orange solid; margin-bottom: 100px; } .box2 { width: 200px; height: 200px; background-color: #bfa; border: 10px red solid; margin-top: 100px; }

5、水平方向布局
元素在其父元素中水平方向的位置由以下几个属性共同决定margin-left
border-left
padding-left
width
padding-right
border-right
margin-right
以上等式必须满足,如果相加结果使等式不成立,则称为==过渡约束==margin-left + border-left + padding-left + width + padding-right + border-right + margin-right = 其父元素的宽度margin-left + border-left + padding-left + width + padding-right + border-right + margin-right = 其父元素的宽度margin-left + border-left + padding-left + width + padding-right + border-right + margin-right = 其父元素的宽度

- 如果这七个值中没有
auto
的情况,则浏览器会自动调整margin-right
值以使等式满足100 + 0 + 0 + 200 + 0 + 0 + 0 = 800
==>100 + 0 + 0 + 200 + 0 + 0 + 500 = 800
- 如果这七个值中有
auto
的情况,则会自动调整auto
值以使等式成立 这七个值中有三个值可以设置为auto
:width
、margin-left
、maring-right
- 如果某个值为 auto,则会自动调整
auto
的那个值以使等式成立200 + 0 + 0 + auto + 0 + 0 + 200 = 600
==>200 + 0 + 0 + 400 + 0 + 0 + 200 = 800
auto + 0 + 0 + 200 + 0 + 0 + 200 = 600
==>400 + 0 + 0 + 200 + 0 + 0 + 200 = 800
200 + 0 + 0 + 200 + 0 + 0 + auto = 600
==>200 + 0 + 0 + 200 + 0 + 0 + 400 = 800
- 如果宽度为
auto
,则宽度会调整到最大,其他auto
的外边距会自动设置为 0auto + 0 + 0 + auto + 0 + 0 + 200 = 600
==>0 + 0 + 0 + 600 + 0 + 0 + 200 = 800
200 + 0 + 0 + auto + 0 + 0 + auto = 600
==>200 + 0 + 0 + 600 + 0 + 0 + 0 = 800
auto + 0 + 0 + auto + 0 + 0 + auto = 600
==>0 + 0 + 0 + 800 + 0 + 0 + 0 = 800
- 如果外边距都为
auto
,则auto
的外边距会自动均分以使等式成立auto + 0 + 0 + 200 + 0 + 0 + auto = 600
==>300 + 0 + 0 + 200 + 0 + 0 + 300 = 800
- 如果某个值为 auto,则会自动调整

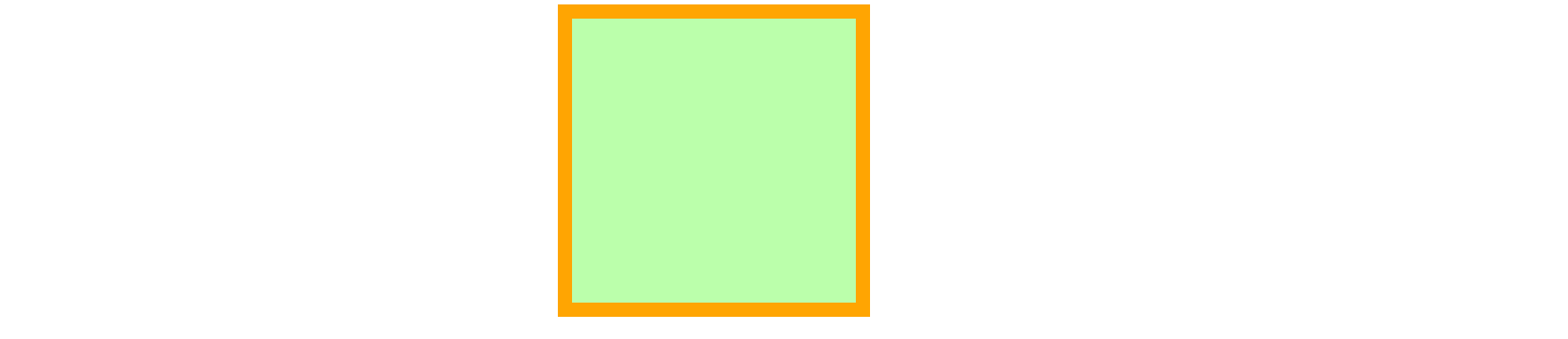

效果<style>.box1 {width: 200px;height: 200px;background-color: #bfa;border: 10px orange solid;/* 下列条件等价于 margin: 0 auto */margin-left: auto;margin-right: auto;}</style><div class="box1"></div><style> .box1 { width: 200px; height: 200px; background-color: #bfa; border: 10px orange solid; /* 下列条件等价于 margin: 0 auto */ margin-left: auto; margin-right: auto; } </style> <div class="box1"></div><style> .box1 { width: 200px; height: 200px; background-color: #bfa; border: 10px orange solid; /* 下列条件等价于 margin: 0 auto */ margin-left: auto; margin-right: auto; } </style> <div class="box1"></div>

6、垂直方向布局
元素溢出
子元素是在父元素的内容区中排列的,如果子元素的大小超过了父元素,则子元素会从父元素中溢出
overflow
/overflow-x
/overflow-y
属性来设置父元素如何处理溢出的子元素
可选值:visible
/hidden
/scroll
/auto

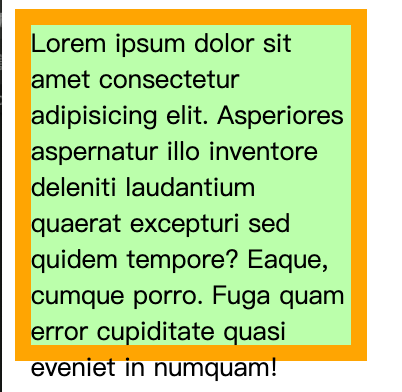

visible
溢出内容会在父元素外部位置显示,默认值
示例
效果<style>.box1 {width: 200px;height: 200px;background-color: #bfa;border: 10px orange solid;overflow: visible; /* 默认值 */}</style><div class="box1">Lorem ipsum dolor sit amet consectetur adipisicing elit. Asperiores aspernaturillo inventore deleniti laudantium quaerat excepturi sed quidem tempore?Eaque, cumque porro. Fuga quam error cupiditate quasi eveniet in numquam!</div><style> .box1 { width: 200px; height: 200px; background-color: #bfa; border: 10px orange solid; overflow: visible; /* 默认值 */ } </style> <div class="box1"> Lorem ipsum dolor sit amet consectetur adipisicing elit. Asperiores aspernatur illo inventore deleniti laudantium quaerat excepturi sed quidem tempore? Eaque, cumque porro. Fuga quam error cupiditate quasi eveniet in numquam! </div><style> .box1 { width: 200px; height: 200px; background-color: #bfa; border: 10px orange solid; overflow: visible; /* 默认值 */ } </style> <div class="box1"> Lorem ipsum dolor sit amet consectetur adipisicing elit. Asperiores aspernatur illo inventore deleniti laudantium quaerat excepturi sed quidem tempore? Eaque, cumque porro. Fuga quam error cupiditate quasi eveniet in numquam! </div>

hidden
溢出内容会被裁剪,不会显示
示例
效果<style>.box1 {width: 200px;height: 200px;background-color: #bfa;overflow: hidden; /* 隐藏溢出内容 */}</style><div class="box1">Lorem ipsum dolor sit amet consectetur adipisicing elit. Asperiores aspernaturillo inventore deleniti laudantium quaerat excepturi sed quidem tempore?Eaque, cumque porro. Fuga quam error cupiditate quasi eveniet in numquam!</div><style> .box1 { width: 200px; height: 200px; background-color: #bfa; overflow: hidden; /* 隐藏溢出内容 */ } </style> <div class="box1"> Lorem ipsum dolor sit amet consectetur adipisicing elit. Asperiores aspernatur illo inventore deleniti laudantium quaerat excepturi sed quidem tempore? Eaque, cumque porro. Fuga quam error cupiditate quasi eveniet in numquam! </div><style> .box1 { width: 200px; height: 200px; background-color: #bfa; overflow: hidden; /* 隐藏溢出内容 */ } </style> <div class="box1"> Lorem ipsum dolor sit amet consectetur adipisicing elit. Asperiores aspernatur illo inventore deleniti laudantium quaerat excepturi sed quidem tempore? Eaque, cumque porro. Fuga quam error cupiditate quasi eveniet in numquam! </div>

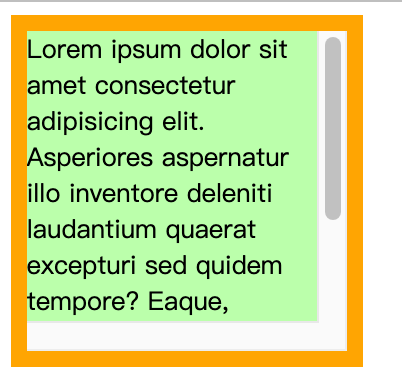

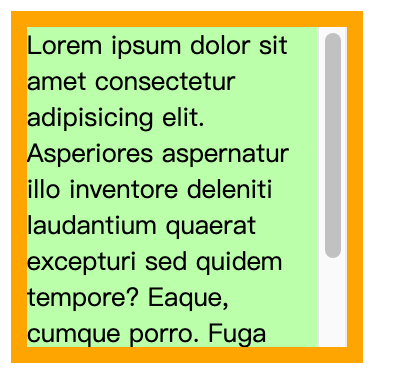

scroll
生成两个滚动条,通过滚动条来查看完整的内容
示例
效果<style>.box1 {width: 200px;height: 200px;background-color: #bfa;overflow: scroll;}</style><div class="box1">Lorem ipsum dolor sit amet consectetur adipisicing elit. Asperiores aspernaturillo inventore deleniti laudantium quaerat excepturi sed quidem tempore?Eaque, cumque porro. Fuga quam error cupiditate quasi eveniet in numquam!</div><style> .box1 { width: 200px; height: 200px; background-color: #bfa; overflow: scroll; } </style> <div class="box1"> Lorem ipsum dolor sit amet consectetur adipisicing elit. Asperiores aspernatur illo inventore deleniti laudantium quaerat excepturi sed quidem tempore? Eaque, cumque porro. Fuga quam error cupiditate quasi eveniet in numquam! </div><style> .box1 { width: 200px; height: 200px; background-color: #bfa; overflow: scroll; } </style> <div class="box1"> Lorem ipsum dolor sit amet consectetur adipisicing elit. Asperiores aspernatur illo inventore deleniti laudantium quaerat excepturi sed quidem tempore? Eaque, cumque porro. Fuga quam error cupiditate quasi eveniet in numquam! </div>


效果<style>.box1 {width: 200px;height: 200px;background-color: #bfa;overflow: auto;}</style><div class="box1">Lorem ipsum dolor sit amet consectetur adipisicing elit. Asperiores aspernaturillo inventore deleniti laudantium quaerat excepturi sed quidem tempore?Eaque, cumque porro. Fuga quam error cupiditate quasi eveniet in numquam!</div><style> .box1 { width: 200px; height: 200px; background-color: #bfa; overflow: auto; } </style> <div class="box1"> Lorem ipsum dolor sit amet consectetur adipisicing elit. Asperiores aspernatur illo inventore deleniti laudantium quaerat excepturi sed quidem tempore? Eaque, cumque porro. Fuga quam error cupiditate quasi eveniet in numquam! </div><style> .box1 { width: 200px; height: 200px; background-color: #bfa; overflow: auto; } </style> <div class="box1"> Lorem ipsum dolor sit amet consectetur adipisicing elit. Asperiores aspernatur illo inventore deleniti laudantium quaerat excepturi sed quidem tempore? Eaque, cumque porro. Fuga quam error cupiditate quasi eveniet in numquam! </div>

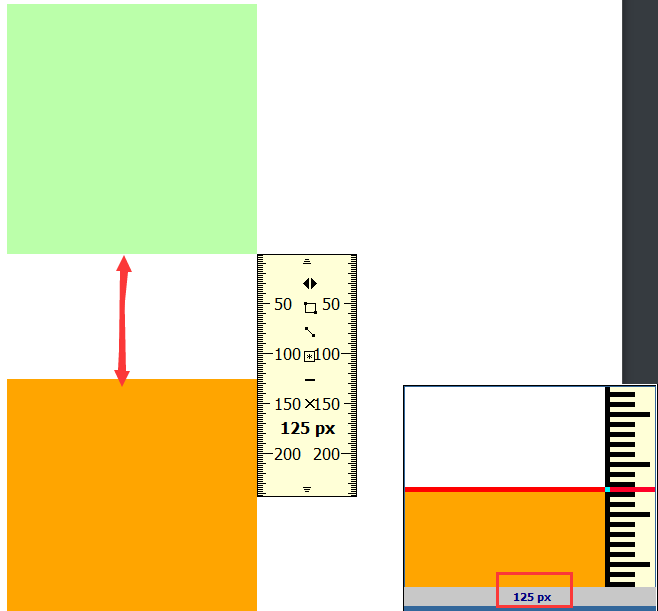

边距折叠
垂直外边距的重叠(折叠):相邻的垂直方向外边距会发生重叠现象兄弟元素
兄弟元素间的相邻,垂直外边距会取两者之间的较大值(两者都是正值) 特殊情况:- 如果相邻的外边距一正一负,则取两者的和
- 如果相邻的外边距都是负值,则取两者中绝对值较大的
效果.box1,.box2 {width: 200px;height: 200px;font-size: 100px;}.boxl {background-color: #bfa;/*设置一个下外边距*/margin-bottom: 100px;}.box2 {background-color: orange;/*设置一个上外边距*/margin-top: 100px;}.box1, .box2 { width: 200px; height: 200px; font-size: 100px; } .boxl { background-color: #bfa; /*设置一个下外边距*/ margin-bottom: 100px; } .box2 { background-color: orange; /*设置一个上外边距*/ margin-top: 100px; }.box1, .box2 { width: 200px; height: 200px; font-size: 100px; } .boxl { background-color: #bfa; /*设置一个下外边距*/ margin-bottom: 100px; } .box2 { background-color: orange; /*设置一个上外边距*/ margin-top: 100px; }

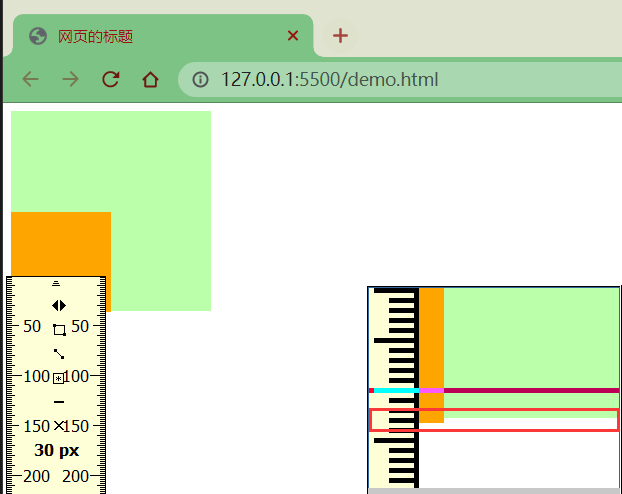

在网页布局中,通过谷歌浏览器或火狐浏览器预览时,发现我们定义的盒模型 width,height,margin,padding 值都是不准确的 谷歌、火狐浏览器 缩放为 80% 时,margin 值才正确[2]总结 兄弟元素之间的外边距的重叠,对于开发是有利的,所以我们不需要进行处理

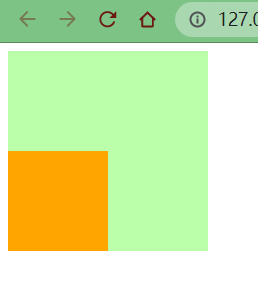

父子元素

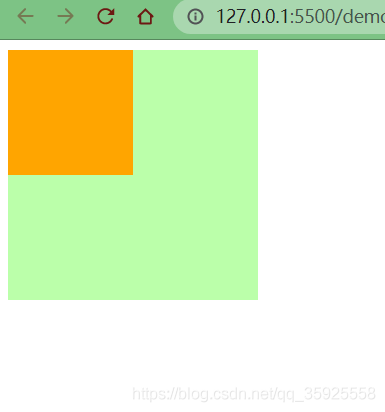

父子元素间相邻外边距,子元素会传递给父元素(上外边距) 示例效果 不加 margin-top.box3{width:200px;height:200px;background-color: #bfa;}.box4{width: 100px;height: 100px;background-color: orange;/* margin-top: 100px; */}.box3{ width:200px; height:200px; background-color: #bfa; } .box4{ width: 100px; height: 100px; background-color: orange; /* margin-top: 100px; */ }.box3{ width:200px; height:200px; background-color: #bfa; } .box4{ width: 100px; height: 100px; background-color: orange; /* margin-top: 100px; */ }

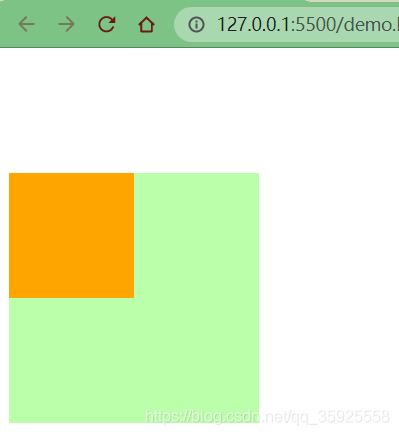

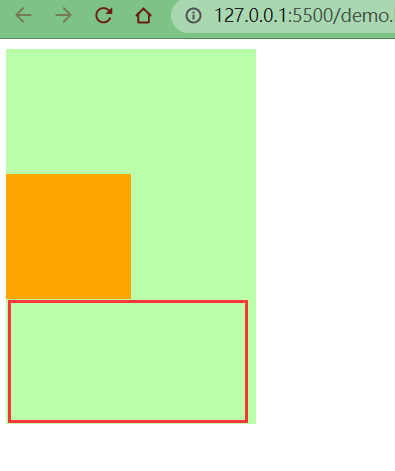

效果.box3 {width: 200px;height: 200px;background-color: #bfa;padding-top: 100px; /* 不调整子元素的margin,而是转而调整父元素的padding */}.box4 {width: 100px;height: 100px;background-color: orange;/* margin-top: 100px; */}.box3 { width: 200px; height: 200px; background-color: #bfa; padding-top: 100px; /* 不调整子元素的margin,而是转而调整父元素的padding */ } .box4 { width: 100px; height: 100px; background-color: orange; /* margin-top: 100px; */ }.box3 { width: 200px; height: 200px; background-color: #bfa; padding-top: 100px; /* 不调整子元素的margin,而是转而调整父元素的padding */ } .box4 { width: 100px; height: 100px; background-color: orange; /* margin-top: 100px; */ }

效果.box3 {width: 200px;height: 100px; /* height: 200px; */background-color: #bfa;padding-top: 100px;}.box4 {width: 100px;height: 100px;background-color: orange;}.box3 { width: 200px; height: 100px; /* height: 200px; */ background-color: #bfa; padding-top: 100px; } .box4 { width: 100px; height: 100px; background-color: orange; }.box3 { width: 200px; height: 100px; /* height: 200px; */ background-color: #bfa; padding-top: 100px; } .box4 { width: 100px; height: 100px; background-color: orange; }

margin-top
属性,但是给父元素加一个上边框

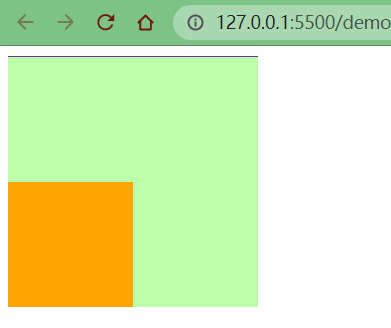

效果.box3 {width: 200px;height: 200px;background-color: #bfa;border-top: 1px rebeccapurple solid; /* 在父元素上加一个border-top(上边框) */}.box4 {width: 100px;height: 100px;background-color: orange;margin-top: 100px; /* 不删除,保留 */}.box3 { width: 200px; height: 200px; background-color: #bfa; border-top: 1px rebeccapurple solid; /* 在父元素上加一个border-top(上边框) */ } .box4 { width: 100px; height: 100px; background-color: orange; margin-top: 100px; /* 不删除,保留 */ }.box3 { width: 200px; height: 200px; background-color: #bfa; border-top: 1px rebeccapurple solid; /* 在父元素上加一个border-top(上边框) */ } .box4 { width: 100px; height: 100px; background-color: orange; margin-top: 100px; /* 不删除,保留 */ }

.box3 {width: 200px;height: 199px; /* height: 200px; */background-color: #bfa;border-top: 1px #bfa solid;}.box4 {width: 100px;height: 100px;background-color: orange;margin-top: 100px;}.box3 { width: 200px; height: 199px; /* height: 200px; */ background-color: #bfa; border-top: 1px #bfa solid; } .box4 { width: 100px; height: 100px; background-color: orange; margin-top: 100px; }.box3 { width: 200px; height: 199px; /* height: 200px; */ background-color: #bfa; border-top: 1px #bfa solid; } .box4 { width: 100px; height: 100px; background-color: orange; margin-top: 100px; }


效果.box3 {width: 200px;height: 199px;background-color: #bfa;border-top: 1px #bfa solid;}.box4 {width: 100px;height: 100px;background-color: orange;margin-top: 99px; /* margin-top: 100px; */}.box3 { width: 200px; height: 199px; background-color: #bfa; border-top: 1px #bfa solid; } .box4 { width: 100px; height: 100px; background-color: orange; margin-top: 99px; /* margin-top: 100px; */ }.box3 { width: 200px; height: 199px; background-color: #bfa; border-top: 1px #bfa solid; } .box4 { width: 100px; height: 100px; background-color: orange; margin-top: 99px; /* margin-top: 100px; */ }


脱离文档流
上述示例 2 中,使用了 border 属性,就让子元素的外边距不去传递给父元素了,这是为什么呢?margin (子元素远离父元素边框)[3] 如果父盒子没有设置 border 框着,那么他的子元素无法利用 margin-top 来远离父元素的上边框 如果使用了 margin-top 会使子元素和父元素一起往下移 (子想离,父不设置 border 边框 则离得是流 不是父盒子)
